Diagnosing Memory Management Issues

Duration

5 minutes

Goals

In this group exercise, we will identify a case where a framework peer promotion causes a memory leak in a Xamarin.iOS application.

Assets

The provided Exercise 4 folder contains a sub-folder named Start with a pre-built Xamarin.iOS application which has a reference cycle in it due to a framework peer promotion.

Steps

Below are the step-by-step instructions to find and fix the reference cycle.

Run the application to see the issue

Let's start by familiarizing ourselves with the starter solution.

  1. Open the PeerPromotion.sln solution.

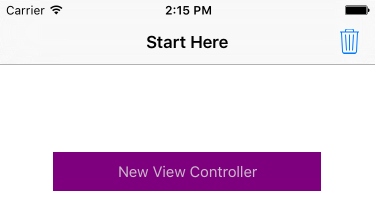

  2. Run the application to see what it does. It should show a screen with a purple button and a GC trash icon in the toolbar:

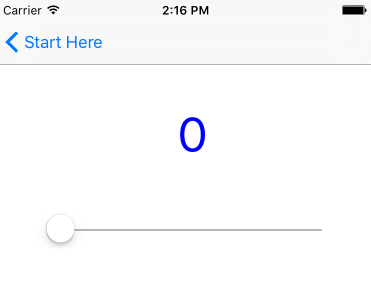

  3. If you press the button, it will display a second screen using a navigation controller. You will also see output in the debug window related to the creation of the screen.
  4. Using the slider will update the label.
  5. Go back to the previous screen by tapping the Back button.
  6. Tapping the trash can icon will perform a GC. Notice that the child view is not being destroyed.
  7. Navigate to and from the child view a few times - you should see the counter continuing to increase but it never goes down; we're leaking the child screen each time. However this leak is not due to a direct parent/child relationship!

Explore the source code

Next, lets look at the code for the application to see if we can identify the issue.

  1. Expand the solution contents.
    • It has a main MainViewController. which provides the first screen you interact with.
    • It has a ViewController.cs which contains the child view.
  2. The ViewController.cs class is the child view which is not being cleaned up properly. Notice that it outputs the creation and destruction as part of the constructor and Dispose method.
  3. In this case, the leak might not be as obvious as earlier examples. But look at the event handler we are wiring up on the slider. Notice we are using a lambda here, but the lambda accesses state in the view controller - that means it will have a reference to the ValueLabel object as part of the handler - ultimately we are creating a reference cycle here, we just can't see it.

Approaches to fixing the leak.

As before, there are a few ways we could fix this:

  1. We could catch when the view is being shown and dismissed and connect and disconnect the event handler (ViewDidAppear and ViewDidDisappear). This means we have to use a standard method handler instead of a lambda.
  2. We could use the Storyboard designer to create the event handler. In this case, it uses the underlying action message to connect up the event rather than a .NET event handler - so no reference cycle is created.
  3. Pick one of these approaches and run the app again and verify that this solves the problem.

Summary

In this exercise, we fixed a framework peer promotion issue which caused a circular reference through an event handler. Check the completed solution in Exercise 4 if you want to see the final code.
