Exercise 2: Share code using Portable Class Libraries

We will work on the same project we did in the previous exercise, but this time we will use a Portable Class Library to share our JSON data loading between the iOS, Android and Windows projects. We will be starting almost where you left off in the last exercise, without the Shared Project implementation, but the code in the platform projects has already been filled out.

Note: Portable Class Libraries have been deprecated in favor of .NET Standard libraries, but you may still find these libraries used in some third-party or legacy code. Knowledge about these libraries also transfers well to using .NET Standard projects.

To complete the exercise, you will need Visual Studio for Windows or macOS with the Xamarin development tools installed. You will also need either an emulator/simulator or a device to run the exercise on. Please see the setup page if you need help installing the Xamarin development environment.

Open the starter solution

Let's begin with a fresh copy of the MyTunes application again. This is the same code you worked on in the previous exercise except all the shared code has been removed. As a result, the project will not build until we make some changes.

1. Find the MyTunes starter solution in the Exercise 2 > Start folder of your copy of the cloned or downloaded course materials.
2. Open the MyTunes.sln starter solution in either Visual Studio on Windows or Mac.
3. Select a platform-specific startup project. To do this, you might have to change the target - for example, the iOS project will only be built if you select either an iPhone or iPhoneSimulator build type.

Add the Portable Class Library

Next, let's create the Portable Class Library (PCL) in our solution. This will hold our shared code.

Right-click on the solution node and select Add > Add New Project.... This will open the New Project wizard in Visual Studio which has several screens to fill in.

There are multiple steps to the wizard, use the chevrons and below to walk you through each step.

Previous

Next

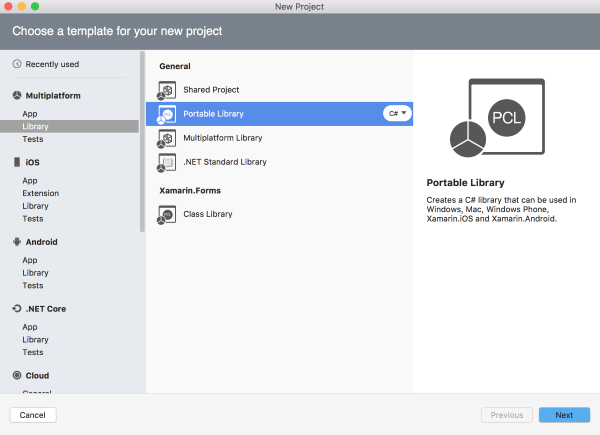

Step 1 - Select the Portable Library Template

In the New Project wizard, select Multiplatform > Library > Portable Library and click Next to continue.

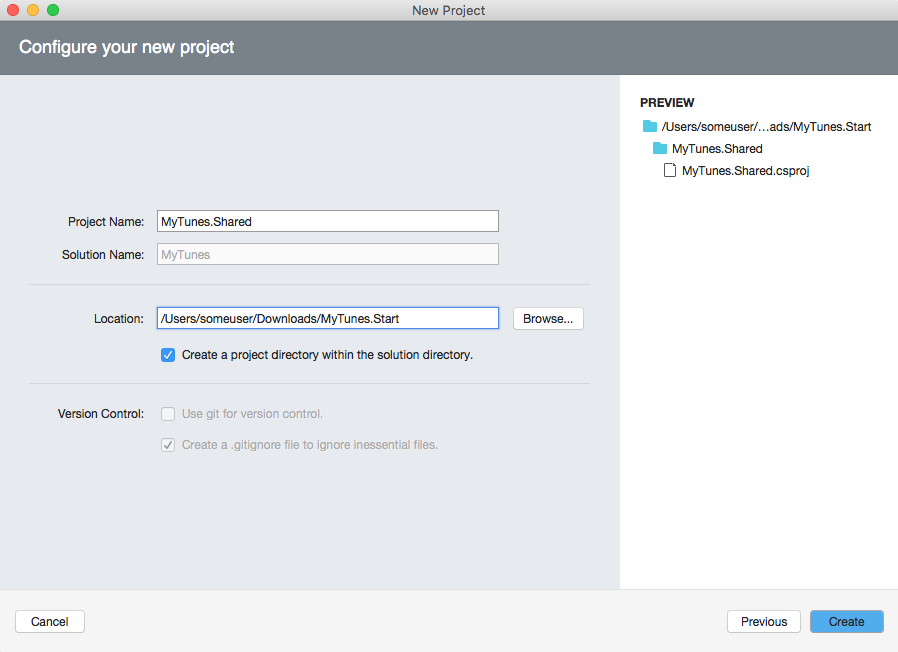

Step 2 - Set the library name

Type in the name for your new library, use the name MyTunes.Shared. Click Create to create the library.

Right click on the solution node and select Add > New Project.... This will open the New Project dialog.

There are multiple steps to the wizard, use the chevrons and below to walk you through each step.

Previous

Next

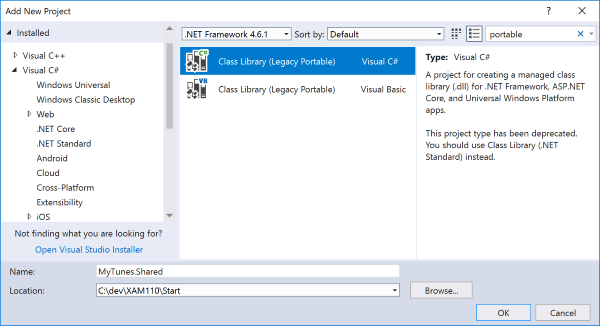

Step 1 - Select the Portable Library Template

Select the Class Library (Legacy Portable) project type - it can be found under the Visual C# category. You can also use the search box at the top right of the dialog to quickly locate the template. Type in the name for your new library: use the name MyTunes.Shared. Click OK to continue.

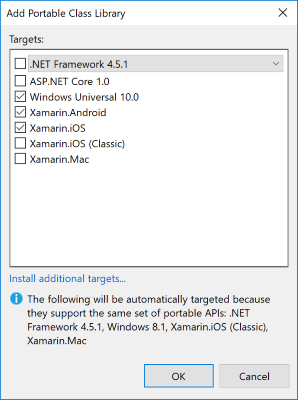

Step 2 - Select the PCL targets

Select all the appropriate targets based on our projects. Windows 10 can be found in the second drop-down, which by default lists Windows 8 variations.

Add the code into the Portable Class Library

It's likely that the New Project wizard added an empty source file into your PCL project. You can delete this file.

Next, we need to add our shared source files found in the Exercise 2 > Assets folder of your copy of the cloned or downloaded course materials.

There are two source files:

Add both C# files to your Portable Class Library project.

Add a NuGet reference to Json.NET

Open the NuGet references window for the Portable Class Library.

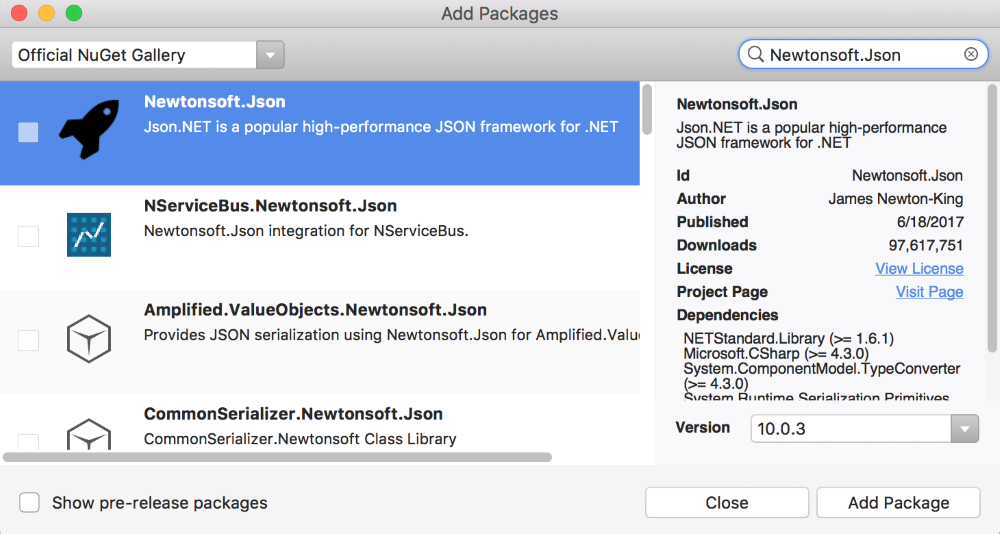

1. Right-click on the Packages folder in the PCL project and select Add Packages....
2. Search for "Newtonsoft.Json" and select the package.
3. Click the Add Package button to add it to your project.

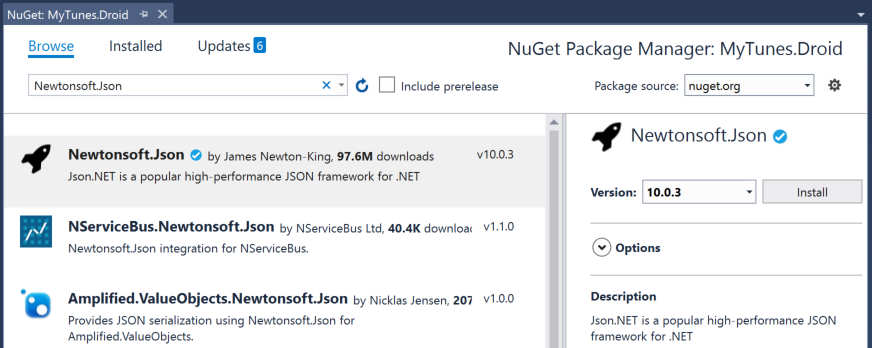

1. Right-click on the References folder in the PCL project and select Manage NuGet Packages....
2. Select the Browse tab in the NuGet window.
3. Search for "Newtonsoft.Json".
4. Select the entry and click the Install button on the right-hand panel.

Add via Package Manager Console

To add this NuGet package via the Package Manager Console, found in the menu under Tools > NuGet Package Manager > Package Manager Console, run the following command:

Install-Package Newtonsoft.Json -ProjectName MyTunes.Shared

Add a reference to the PCL

1. Add a reference to the PCL for each of the target projects you want to work with (iOS | Windows | Android).
2. Build the solution. The projects should now all build properly - however they will throw an ArgumentNullException at runtime because we've not added the code to load the file.

Create an abstraction

The songs.json file is located in each of the platform-specific projects - just as we had it in the Shared Project version of this exercise.

Since we've got the data file stored in a platform-specific way, we will need to use platform-specific code to get to our data.

The code to read the json file is a separate DLL from each platform-specific project; we can't just add the code into the library. In addition, because it's a Portable Library, file I/O is prohibited - we can only work with a Stream. We need to create an abstraction - let's use an interface.

Create an IStreamLoader

1. Create a new interface in the Portable Class Library. Name it IStreamLoader.
2. It should have a single method which takes a string filename and returns a Stream.
   • Note: You will need to add using System.IO or fully qualify the Stream class.
3. Name the method GetStreamForFilename.

namespace MyTunes
{
    public interface IStreamLoader
    {
        System.IO.Stream GetStreamForFilename(string filename);
    }
}

Implement the abstraction

• In each platform specific project, create a new class named StreamLoader that implements IStreamLoader.
• Use the platform specific instructions below for each platform to complete the GetStreamForFilename method.

using System.IO;
using MyTunes.Shared;
...
class StreamLoader : IStreamLoader
{
    public Stream GetStreamForFilename(string filename)
    {
        return File.OpenRead(filename);
    }
}

using System.IO;
using MyTunes.Shared;
...
public class StreamLoader : IStreamLoader
{
    private readonly Context context;

    public StreamLoader(Context context)
    {
        this.context = context;
    }
    public Stream GetStreamForFilename(string filename)
    {
        return context.Assets.Open(filename);
    }
}

using MyTunes.Shared;
using System;
using System.IO;
using MyTunes.Shared;
using Windows.ApplicationModel;
...
public class StreamLoader : IStreamLoader
{
    public Stream GetStreamForFilename(string filename)
    {
        return Package.Current.InstalledLocation.GetFileAsync(filename)
            .AsTask().Result
            .OpenStreamForReadAsync().Result;
    }
}

The projects should all still build properly - however they will still throw an ArgumentNullException at runtime because we've not started using the StreamLoader implementations.

Prepare to inject the abstraction

Next, we need to provide the abstraction to the PCL. Again, we could use a variety of techniques here, and you are encouraged to try different variations if you have time. In this case, we will add a static property to the SongLoader class and set it prior to calling Load. We could also pass it into the Load method, or change the class to be non-static and then pass it into a constructor. Any of these would be valid - with the constructor form probably the most ideal since we really do need the abstraction to execute.

1. Open the SongLoader.cs file and add a public static property named Loader of type IStreamLoader.
2. Edit the OpenData method to test the property for null and then use it to open the passed filename.
3. If the Loader implementation hasn't been set and is still null, then throw an exception.

Note: If you did not change the namespace of your IStreamLoader interface when you added the new source file, then you might need to include the MyTunes.Shared namespace to have access that type.

public static class SongLoader
{
    const string Filename = "songs.json";
    public static IStreamLoader Loader { get; set; }
    ...

    private static Stream OpenData()
    {
        if (Loader == null)
        {
            throw new Exception("Must set platform Loader before calling Load.");
        }

        return Loader.GetStreamForFilename(Filename);
    }
}

Again, the projects will still build, but without setting our Loader implementation, we will now throw our new Exception at runtime.

Inject the abstraction

Finally, set the property in each of your platform projects to your implementation. This should be done just before call to the async SongLoader.Load method. The specific location is shown in each of the code blocks below.

// MyTunesViewController.cs
public async override void ViewDidLoad()
{
   base.ViewDidLoad();

   // Load the data
   SongLoader.Loader = new StreamLoader();
   var data = await SongLoader.Load();
   ...
}

// MainActivity.cs
protected async override void OnCreate(Bundle bundle)
{
    base.OnCreate(bundle);

    SongLoader.Loader = new StreamLoader(this);
    var data = await SongLoader.Load();
    ...
}

// Mainpage.xaml.cs
protected async override void OnNavigatedTo(NavigationEventArgs e)
{
    base.OnNavigatedTo(e);

    SongLoader.Loader = new StreamLoader();
    this.DataContext = await SongLoader.Load();
}

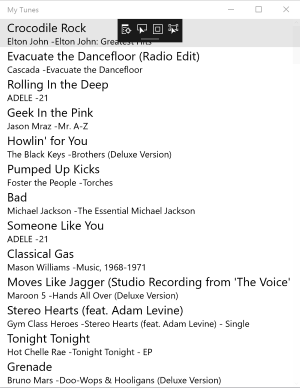

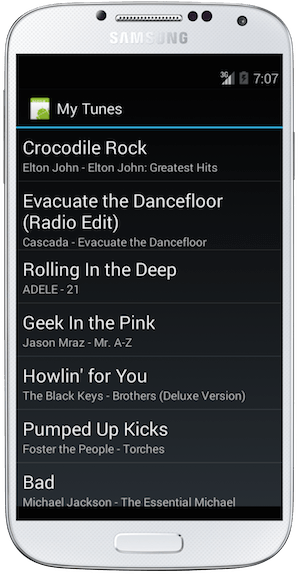

Test the applications

Run each of the platforms - they should all display the song list. Remember to select a build configuration for each platform - for example, Windows UWP requires either x86 or x64 and iOS requires either iPhone or iPhoneSimulator.

Exercise summary

In this exercise, you have utilized a Portable Class Library to hold code that is shared between several application styles. You used a design pattern known as Dependency Injection to integrate platform-specific logic into the shared code in the form of file I/O. You can learn more about the DI pattern through the documentation links on the right.

You can view the completed solution in the Exercise 2 > Completed folder of your copy of the cloned or downloaded course materials.
